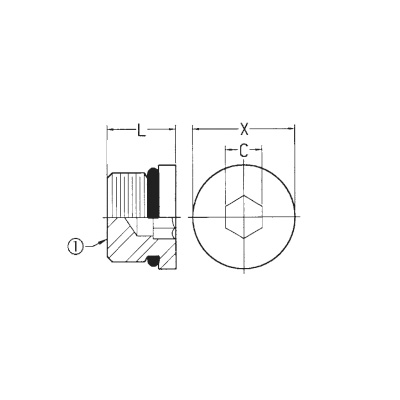

| Part No. | 1 Male ORB | C Hex Socket | L Length | X Diameter | Operating Pressure | |||||
| 6409-02 6409-03 | 5/16 - 24 3/8 - 24 | 1/8 1/8 | 0.41 0.41 | 7/16 1/2 | 6,000 6,000 | |||||
| 6409-04 6409-05 | 7/16 - 20 1/2 - 20 | 3/16 3/16 | 0.48 0.48 | 9/16 5/8 | 6,000 6,000 | |||||
| 6409-06 6409-08 | 9/16 - 18 3/4 - 16 | 1/4 5/16 | 0.51 0.59 | 11/16 7/8 | 6,000 6,000 | |||||
| 6409-10 6409-12 | 7/8 - 14 1 1/16 - 12 | 3/8 9/16 | 0.66 0.78 | 1” 1 1/4 | 6,000 6,000 | |||||
| 6409-14 6409-16 | 1 3/16 - 12 1 5/16 - 12 | 9/16 5/8 | 0.78 0.78 | 1 3/8 1 1/2 | 5,500 5,500 | |||||
| 6409-20 6409-24 | 1 5/8 - 12 1 7/8 - 12 | 3/4 3/4 | 0.78 0.78 | 1 7/8 2 1/8 | 4,000 3,000 | |||||
| 6409-32 | 2 1/2 - 12 | 3/4 | 0.78 | 2 3/4 | 2,000 | |||||
