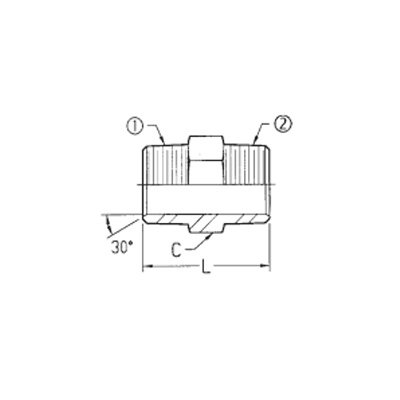

Part No.		1 Male NPTF		2 Male NPTF		C Hex		L Length		Operating Pressure
5404-02-02 5404-04-02		1/8 - 27 1/4 - 18		1/8 - 27 1/8 - 27		7/16 5/8		1.06 1.26		6,000 6,000
5404-04-04 5404-04-04X		1/4 - 18 1/4 - 18		1/4 - 18 1/4 - 18		5/8 5/8		1.45 1.45		6,000 6,000
5404-06-02 5404-06-04		3/8 - 18 3/8 - 18		1/8 - 27 1/4 - 18		3/4 3/4		1.26 1.45		6,000 6,000
5404-06-04X #Dual Chamfer 5404-06-06		3/8 - 18 3/8 - 18		1/4 - 18 3/8 - 18		3/4 3/4		1.45 1.45		6,000 6,000
5404-06-06X #Dual Chamfer 5404-08-02		3/8 - 18 1/2 - 14		3/8 - 18 1/8 - 27		3/4 7/8		1.45 1.52		6,000 6,000
5404-08-04 5404-08-06		1/2 - 14 1/2 - 14		1/4 - 18 3/8 - 18		7/8 7/8		1.70 1.70		6,000 6,000
5404-08-08 5404-12-02		1/2 - 14 3/4 - 14		1/2 - 14 1/8 - 27		7/8 1 1/8		1.89 1.59		6,000 6,000
5404-12-04 5404-12-06		3/4 - 14 3/4 - 14		1/4 - 18 3/8 - 18		1 1/8 1 1/8		1.78 1.77		5,500 5,500
5404-12-08 5404-12-12		3/4 - 14 3/4 - 14		1/2 - 14 3/4 - 14		1 1/8 1 1/8		1.96 1.96		5,500 5,500
5404-16-08 5404-16-12		1 - 11 1/2 1 - 11 1/2		1/2 - 14 3/4 - 14		1 3/8 1 3/8		2.09 2.15		4,500 4,500
5404-16-16 5404-20-04		1 - 11 1/2 1 1/4 - 11 1/2		1 - 11 1/2 1/4 - 18		1 3/8 1 3/4		2.34 1.99		4,500 3,000
5404-20-12 5404-20-16		1 1/4 - 11 1/2 1 1/4 - 11 1/2		3/4 - 14 1 - 11 1/2		1 3/4 1 3/4		2.26 2.45		3,000 3,000
5404-20-20 5404-24-12		1 1/4 - 11 1/2 1 1/2 - 11 1/2		1 1/4 - 11 1/2 3/4 - 14		1 3/4 2”		2.48 2.36		3,000 3,000
5404-24-16 5404-24-20		1 1/2 - 11 1/2 1 1/2 - 11 1/2		1 - 11 1/2 1 1/4 - 11 1/2		2” 2”		2.55 2.58		3,000 3,000
5404-24-24 5404-32-16		1 1/2 - 11 1/2 2 - 11 1/2		1 1/2 - 11 1/2 1 - 11 1/2		2” 2 1/2		2.61 2.73		3,000 2,000
5404-32-20 5404-32-24		2 - 11 1/2 2 - 11 1/2		1 1/4 - 11 1/2 1 1/2 - 11 1/2		2 1/2 2 1/2		2.76 2.79		2,000 2,000
5404-32-32		2 - 11 1/2		2 - 11 1/2		2 1/2		2.82		2,000
