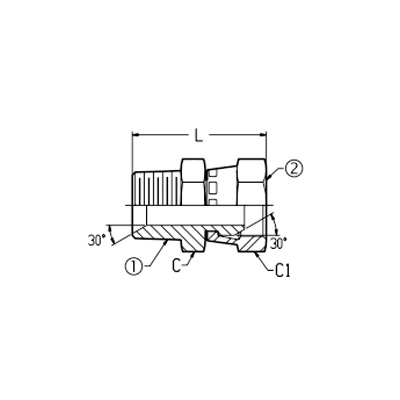

| Part No. | 1 Male NPTF | 2 Female NPSM Swivel | C Hex | C1 Nut Hex | L Length | Operating Pressure | ||||||||||
| 1404-02-02 1404L-02-02 # Lubrication | 1/8 - 27 1/8 - 27 | 1/8 - 27 1/8 - 27 | 9/16 1/2 | 9/16 1/2 | 1.08 1.00 | 5,000 | ||||||||||
| 1404-02-04 1404-04-02 | 1/8 - 27 1/4 - 18 | 1/4 - 18 1/8 - 27 | 11/16 11/16 | 11/16 9/16 | 1.24 1.30 | 5,000 5,000 | ||||||||||
| 1404-04-04 1404-04-06 | 1/4 - 18 1/4 - 18 | 1/4 - 18 3/8 - 18 | 11/16 7/8 | 11/16 7/8 | 1.42 1.49 | 5,000 5,000 | ||||||||||
| 1404-04-08 1404-06-04 | 1/4 - 18 3/8 - 18 | 1/2 - 14 1/4 - 18 | 3/4 11/16 | 1” 11/16 | 1.60 1.55 | 3,500 4,000 | ||||||||||
| 1404-06-06 1404-06-08 | 3/8 - 18 3/8 - 18 | 3/8 - 18 1/2 - 14 | 7/8 1” | 7/8 1” | 1.61 1.66 | 4,000 3,500 | ||||||||||
| 1404-08-04 1404-08-06 | 1/2 - 14 1/2 - 14 | 1/4 - 18 3/8 - 18 | 7/8 7/8 | 11/16 7/8 | 1.81 1.86 | 5,000 3,500 | ||||||||||
| 1404-08-08 1404-08-12 | 1/2 - 14 1/2 - 14 | 1/2 - 14 3/4 - 14 | 1” 1 1/4 | 1” 1 1/4 | 1.89 2.08 | 3,500 2,200 | ||||||||||
| 1404-12-08 1404-12-12 | 3/4 - 14 3/4 - 14 | 1/2 - 14 3/4 - 14 | 1 1/8 1 1/4 | 1” 1 1/4 | 1.87 2.09 | 2,200 2,200 | ||||||||||
| 1404-12-16 1404-16-12 | 3/4 - 14 1 - 11 1/2 | 1 - 11 1/2 3/4 - 14 | 1 1/2 1 1/2 | 1 1/2 1 1/4 | 2.14 2.32 | 2,000 2,200 | ||||||||||
| 1404-16-16 1404-16-20 | 1 - 11 1/2 1 - 11 1/2 | 1 - 11 1/2 1 1/4 - 11 1/2 | 1 1/2 1 7/8 | 1 1/2 1 7/8 | 2.35 2.37 | 2,000 1,600 | ||||||||||
| 1404-20-16 1404-20-20 | 1 1/4 - 11 1/2 1 1/4 - 11 1/2 | 1 - 11 1/2 1 1/4 - 11 1/2 | 1 7/8 1 7/8 | 1 1/2 1 7/8 | 2.39 2.50 | 1,600 1,600 | ||||||||||
| 1404-20-24 1404-24-20 | 1 1/4 - 11 1/2 1 1/2 - 11 1/2 | 1 1/2 - 11 1/2 1 1/4 - 11 1/2 | 2 1/8 2 1/8 | 2 1/8 1 7/8 | 2.49 2.56 | 1,300 1,200 | ||||||||||
| 1404-24-24 1404-32-32 | 1 1/2 - 11 1/2 2 - 11 1/2 | 1 1/2 -11 1/2 2 - 11 1/2 | 2 1/8 2 5/8 | 2 1/8 2 5/8 | 2.69 2.75 | 1,200 1,100 | ||||||||||
